DCT hydraulic control unit EOLT

Transmission system：DCT hydraulic control unit EOLT


DCT hydraulic control unit EOLT

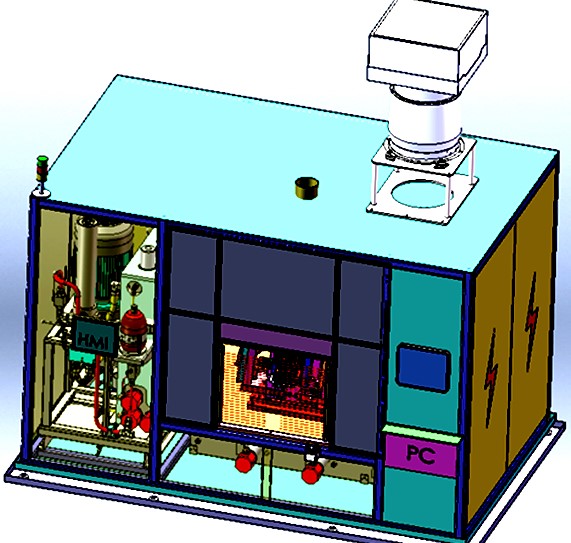

● DCT Valve  Block EOL Testing Bench

● Quick changeover for test fixture

● Temp. Range RT to 60ºC Continuous

● Pressure Range:： 1~80 BAR

● Auto clamping: Force 1~300Bar continuous

● Temp. Control Accurancy： ± 2ºC

● Pressure Control Accurancy: ± 0.2 Bar

● Flow Control Accurancy： ± 0.2 LPM

Main Test Items：

● Main pressure response time

● Main pressure PI test

● ODD/EVEN clutch control valve response time test

● ODD/EVEN clutch control valve PI test

● PG valve response time test

● PG valve PI test

● Gear logistic control test

● Hydraulic cylinder FI test

● LUB flow test

● HCU leakage test
