PPV(NL/NH)/QPV/VFS/ACS Valve EOLT

Transmission system-single valve integrated test station PPV(NL/NH)/QPV/VFS/ACS Valve EOLT

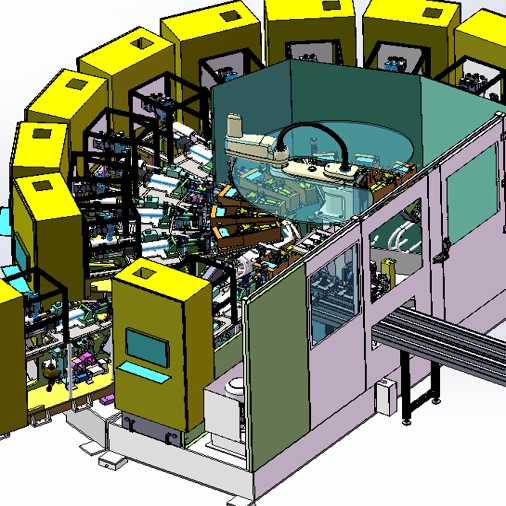

DCT PPV Valve EOL tester

● 10 individual EOL testing unit

● 5 variants of product sharing

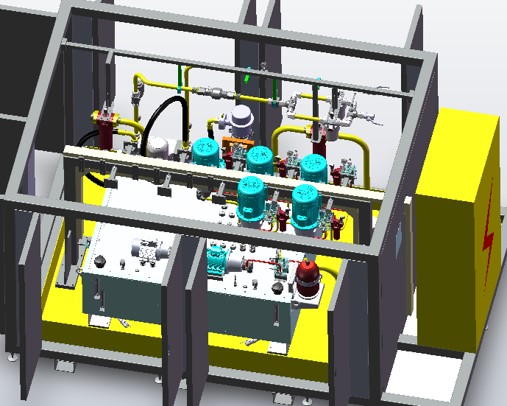

● Separated Hydraulic supply center

● Robot load & unload.

● Flow adjusting and calibrating online.

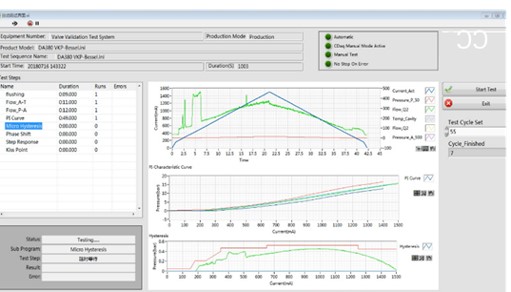

Main test steps:

● Flow Q test P-A/A-T：

● PI curve / QI curve

● Marco / micro Hysteresis test

● Home position / control position leakage test

● Characteristic curve Steadiness

● Characteristic curve amplitude test

● Phase shift test.

● Response time test.
