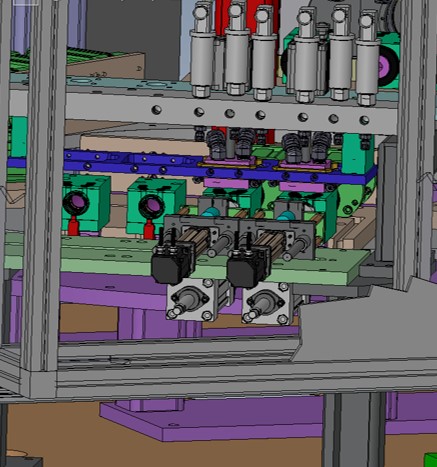

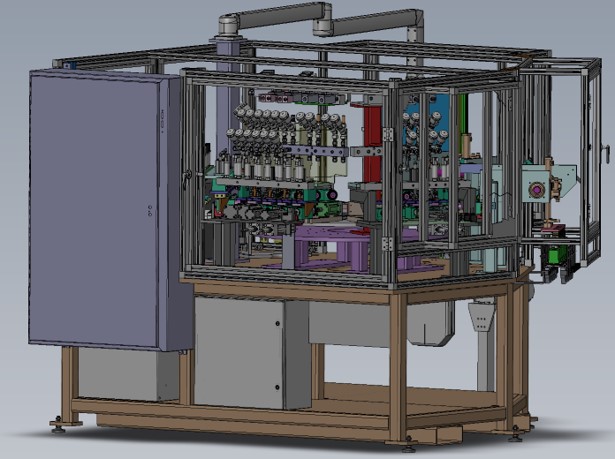

Engine system-mid-mounted OCV valve test

Engine system-mid-mounted OCV valve test

Test medium： Compressed air
Developed by LabVIEW：Labview

Main test item：

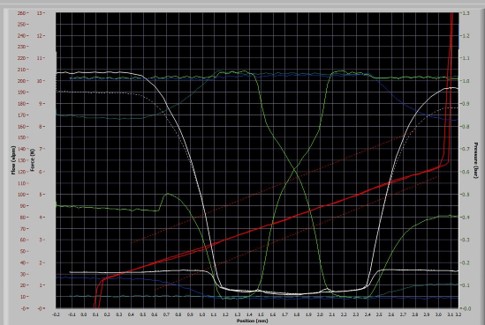

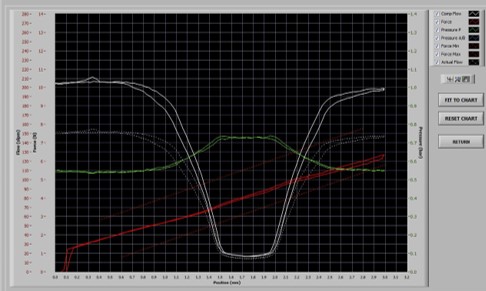

● QI Curve

● Q start 、Q end

● Pab

● I_ middle position

● Hysteresis

● Leakage flow_ middle position

Main test element:

● Air pressure sensor

● Electrical converter

● Dither power

● Capture card

● Leakage tester
