常规油泵

作者：admin 浏览量：326 来源：本站时间：2022-12-24 14:08:07

信息摘要：

油泵测试 – 常规油泵Oil pump test：Test process 0. fix vacuum pump, and check all medium status, check the torque 1. measure pressure in the extra 1,5L chamber 2. measure pressure without extra chamber 3. evaluate the

油泵测试 – 常规油泵

Oil pump test：

Test process
0. fix vacuum pump, and check all medium status, check the torque
1. measure pressure in the extra 1,5L chamber
2. measure pressure without extra chamber

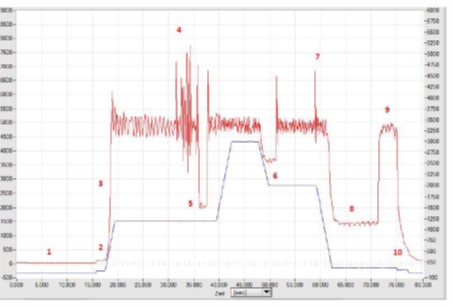

3. evaluate the pressure (final result & curve)

Medium：

● Hon-oil with the same viscosity in low Temperature

● Use air to clean the inside chamber after test

Test parameter 主要参数：

● Max. Speed 最大转速:6000rpm

● Torque 扭矩:0.5 NM @ 40RPM

● Oil Temp. 温度范围: RT to 100C

● Max Air Pressure 最大气压:10Bar

● Max Volume 最大流量：80L/min
